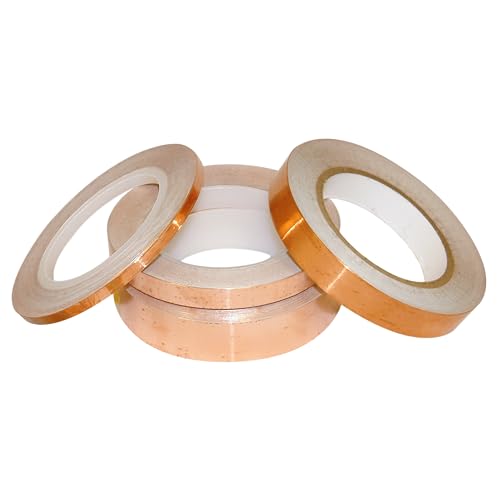

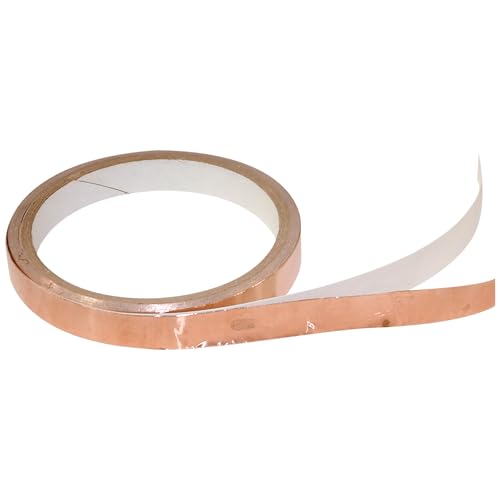

J.V. Converting JVCC Copper Foil Tape, 1/4 in. x 36 yds. (Copper)

About this item

• JVCC CFL-5CA Copper Foil Tape is a 1 ounce rolled copper foil which provides excellent solderability and conformity. Used for RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables, and motors). CFL-5CA is coated with an acrylic adhesive which is uniformly dispersed with conductive spheres.
• Its conductive adhesive is ideal for printed circuit board modification, security-alarm circuit repairs, and prototype wiring-board layout and design. Also for cable wrapping to provide EMI/RFI shielding, seaming of EMI/RFI shielded rooms for electrical continuity, static charge draining and for surface contact to non-solderable materials (e.g. aluminum or plastics).
• Thickness: 3 mils (carrier, adhesive) 1.6 mils (adhesive) 1.4 mils (carrier). Elongation: 6%. Carrier/Backing: copper foil. Adhesive: conductive acrylic.
• Electrical Resistance: 0.003 Ohms/square inch. Adhesion: 70 ounces per inch (to stainless steel test panel). Tensile Strength: 36 pounds per inch (longitudinal). Service/Operating Temperature: up to 311F.
• Standards Met: File #130121, UL510, Section 4. Release Liner: 60# paper. Core: 3-inch diameter neutral.

Overview

• Brand: J.V. Converting
• Color: Copper
• Material: copper foil
• Number of Items: 1
• Recommended Uses For Product: Arts And Craft, Electrical
